作为防水层外的承重层和隔热层的蜂窝玻璃板ce认证标准-ETA认证

EAD 040777-00-1201: 2017

CELLULAR GLASS BOARDS AS LOAD BEARING LAYER AND THERMAL INSULATION OUTSIDE THE WATERPROOFING

作为防水层外的承重层和隔热层的蜂窝玻璃板

The factory-made products are of foamed cellular glass with a closed cell structure. Cellular glass boards can be assembled together by bonding. These composite boards can have a bitumen coating on both faces. Cellular glass boards are manufactured with straight edges.

上海郜盟提示这些工厂生产的产品为发泡式中空玻璃，具有封闭式中空结构。中空玻璃板可通过粘接方式组装在一起。这些复合板两面均可覆有沥青涂层。中空玻璃板在制造时采用了直边设计。

The cellular class boards are not fully covered by the following harmonised technical specification:EN 13167.

蜂窝类板材未完全受以下协调技术规范EN13167的覆盖。

The deviations from the standards are:

-The products have to fulfil specific requirements and properties concerning the load bearing function concerning e.g. compressive strength and shear behavior as well as compressive creep(see intended use a) according to clause 1.2.1/ BWR 1 according to Table 1). The load bearing function is limited to predominantly static loads.

与标准的偏差如下:

-这些产品必须满足与承载功能相关的特定要求和特性，包括但不限于抗压强度、剪切性能以及抗压蠕变(参见预期用途a)等内容(根据第1.2.1/BWR1条的规定，参照表1)。承载功能仅限于主要承受静态载荷。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细列出。

What is an EAD?什么是EAD？

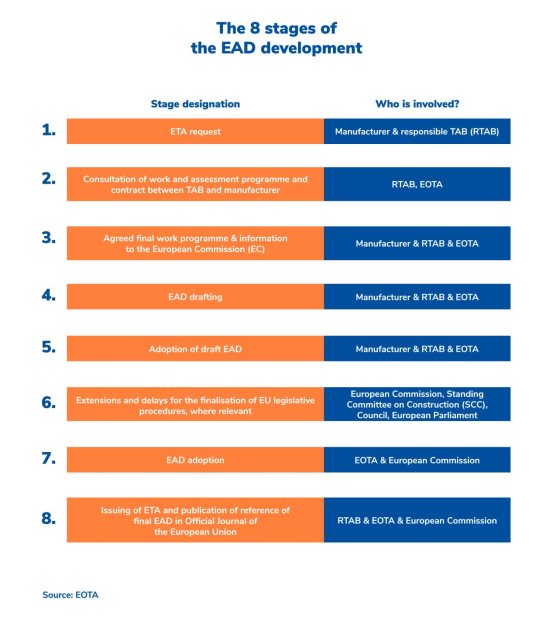

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

作为防水层外的承重层和隔热层的蜂窝玻璃板ce认证法规-ETA认证

作为防水层外的承重层和隔热层的蜂窝玻璃板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

作为防水层外的承重层和隔热层的蜂窝玻璃板ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

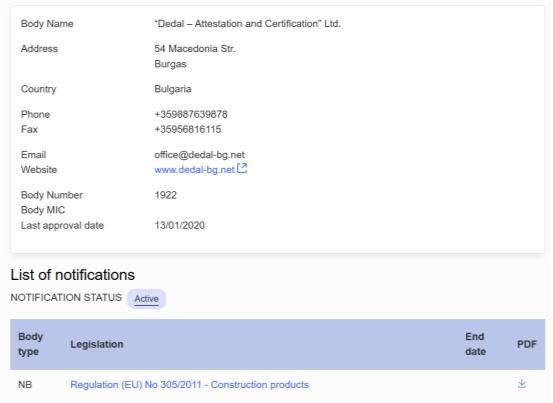

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
