EAD 040831-00-1201: 2017用于声学和热绝缘的工厂制造粘合泡沫CE认证/ETA认证详解-上海郜盟

用于声学和热绝缘的工厂制造粘合泡沫ce认证标准-ETA认证

The factory-made bonded foam to be used as acoustic and thermal insulation is a type of bonded foam,based on recycled polyurethane flakes used for acoustic and thermal insulation purposes. The construction product can exist in the form of rolls and/or slabs and contains a mixture of PU foam flakes(recyclates) and fibres. The product can be tapered or sloped. The product can be a bonded foam as such and/or may be faced on one or both sides with a flexible facing or different facing materials. In this document, the product covered by this EAD has been referred to as "bonded foam"

上海郜盟提示作为声学及热绝缘材料使用的工厂预制粘合泡沫是一种粘合泡沫类型，它以用于声学及热绝缘目的的回收聚氨酯薄片为基础制成。这种建筑产品可呈卷筒和/或板状形式存在，并包含聚氨酯泡沫薄片(回收料)与纤维的混合物。产品可呈锥形或斜面状。该产品既可以是单纯的粘合泡沫，也可能在一侧或两侧覆盖有柔性面层或不同面层材料。在本文件中，本EAD所涵盖的产品被统称为“粘合泡沫”

The bonded foam is composed of:

-Recycled polyurethane: 70 to 90 % (recyclates).

-Polyester low-melting fibres: 10 to 30 % (This material comes from raw material sourcing but can be recycled from production of the bonded foam).

粘合泡沫由以下成分组成:

-再生聚氨酯:70%至90%(回收材料)

-聚酯低熔纤维:10%至30%(该材料来源于原材料采购，但也可从粘合泡沫的生产过程中回收)。

The ETA will be issued for the product on the basis of its composition and the other agreed data/information which are deposited with the issuing Technical Assessment Body.

该ETA将根据产品的组成及其他已提交给签发技术评估机构的数据/信息予以发布。

The ETA issued on the basis of this EAD is only valid for products which correspond to the above-mentioned product definition.

基于本EAD签发的ETA仅适用于符合上述产品定义的产品。

The product is not fully covered by EN 131651 as the characteristics "air flow resistance" and "airborne sound insulation" are not covered by EN 13165 and the assessment methods for the essential characteristics reaction to fire (2.2.1), content, emission and/or release of dangerous substances (2.2.3).tensile strength perpendicular to faces (2.2.7), length (2.2.8.1), width (2.2.8.1), thickness (2.2.8.2),squareness (2.2.8.3), density (2.2.9), water vapour transmission (2.2.10), dimensional stability (2.2.11),short-term water absorption (2.2.12) and thermal conductivity and thermal resistance (2.2.13) deviate from the methods specified in EN 13165.

该产品并未完全符合EN13165的规定，因为其中特性“空气阻力”和“空气传声隔声”并未被EN13165所涵盖;此外，对于基本特性一一对火的反应(2.2.1)、所含内容物、危险物质的排放和/或释放(2.2.3)、垂直于表面的拉伸强度(2.2.7)、长度(2.2.8.1)、宽度(2.2.8.1)、厚度(2.2.8.2)、平整度(2.2.8.3)、密度(2.2.9)、水蒸气透过率(2.2.10)、尺寸稳定性(2.2.11)、短期吸水率(2.2.12)以及热导率和热阻(2.2.13)--的评估方法与EN13165中规定的方法存在差异。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual professional building practices.

假设产品将按照制造商的说明进行安装，或(若无此类说明)按照通常的专业建筑实践进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中予以详细阐述。

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

用于声学和热绝缘的工厂制造粘合泡沫ce认证法规-ETA认证

用于声学和热绝缘的工厂制造粘合泡沫产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

用于声学和热绝缘的工厂制造粘合泡沫ce认证模式

TAB机构测试+ETA认证， 由欧盟公告机构进行工厂审核后发证

用于声学和热绝缘的工厂制造粘合泡沫ce认证测试哪些项目

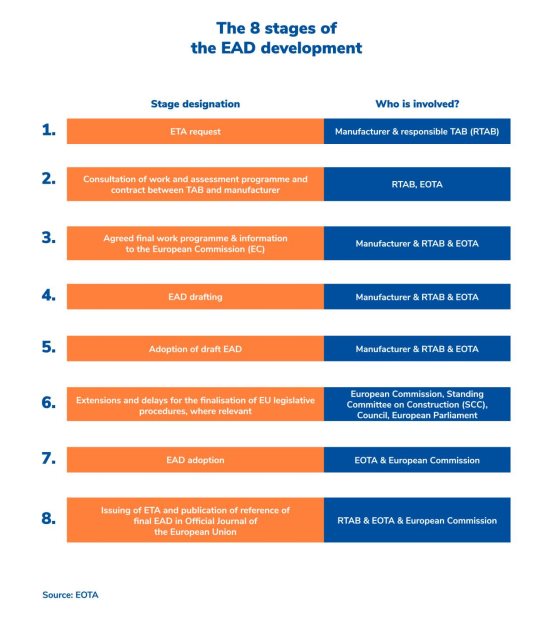

EAD认证流程

用于声学和热绝缘的工厂制造粘合泡沫ce认证机构

公告号机构NB1922,拥有欧盟全品类建材产品授权，上海郜盟拥有该机构直接授权，上海办公室审核员可直接代表机构进行工厂审核，大大减少工厂的差旅成本和时间成本

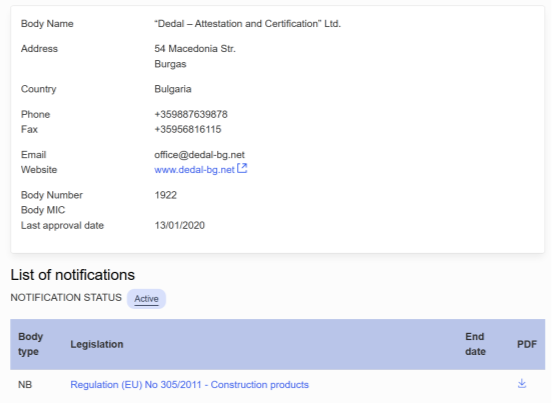

NB1922欧盟官网资质：

上海郜盟，专业CE认证服务，丰富的行业经验以及专业的工程师可帮助中国工厂快速通过合规评定，取得CE证书！！
