用于外墙保温的预制单元及其固定装置ce认证标准-ETA认证

EAD 040914-00-0404: 2018

VETURE KITS-PREFABRICATED UNITS FOR EXTERNAL WALL INSULATION AND THEIR FIXING DEVICES

VETURE组件——用于外墙保温的预制单元及其固定装置

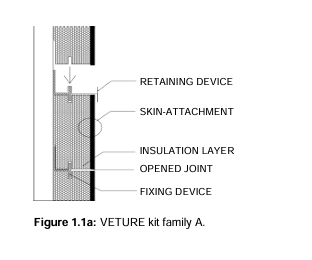

81fca5f3-5761-4168-b214-cab24ae13038

This EAD covers the assessment of VETURE kit1 for the thermal insulation of external walls.

上海郜盟提示本EAD涵盖VETURE套件在外部墙体保温中的评估。

This EAD is applicable to the VETURE kits belonging to the families given in table 1.1.1. They consist of the following components:

本EAD适用于表1.1.1中所列家族的VETURE套件。它们由以下组件组成

1. VETURE unit. Prefabricated component to be delivered on site as a factory made unit composed of:

1.VETURE单元。预制组件，需在现场交付为工厂制造的单元，由以下部分组成:

·Factory made thermal insulation products made of materials given in table 1.1.2,

Thermal insulation product may or not present superficial treatments.

Thermal insulation products type of material, dimensions, density or weight per square meter and water absorption are known and can be duly specified.

·工厂生产的热绝缘产品，所用材料见表 1.1.2

隔热产品可能带有或不带有表面处理工艺。

隔热制品的材质类型、尺寸、每平方米的密度或重量以及吸水性均已知并可适当予以具体说明。

·Skin. Factory applied coverings such as claddings (sheets, tiles, boards, panels, brick slips,shingles) or renders (reinforced or not) made of the materials given in table 1.1.2.

Skins type of material (in the case of natural stone also name and petrographic description),dimensions (when relevant also grooves and dowel holes dimensions) and density or weight per square meter are known and can be duly specified.

·皮肤。工厂施用的覆盖层，如覆层（板材、瓦片、木板、面板、砖块碎片、木瓦）或涂层（强化或不强化）材料，应符合表 1.1.2 中所列的材质要求。

饰面材料的类型（对于天然石材还应包括名称和岩石学描述）、尺寸（必要时还包括沟槽和榫眼孔的尺寸）以及每平方米的密度或重量均已知并可适当予以说明。

·Skin-attachment. Factory applied mode to attach the skin to the thermal insulation product. Two types of attachments may be considered:

·皮肤附着。工厂应用模式，用于将皮肤与保温产品相连接。可以考虑两种类型的附着方式：

-Adhesively attached: with adhesive (specific adhesive or organic/inorganic mortar) or without adhesive (skin attached: during the forming process of insulation).

Adhesives type of material, range of thickness application, water quantity ratio (if relevant)coverage and density are known and can be duly specified.

-用胶粘剂固定：采用胶粘剂（特定胶粘剂或有机/无机砂浆）或无需胶粘剂（皮肤附着：在绝缘材料成型过程中）。

胶粘剂的类型、厚度适用范围、用水量比例（若适用）、覆盖范围和密度均已知并可适当予以具体说明。

-Mechanically attached by means of mechanical fixings as indicated in table 1.1.1

Mechanical fixings geometric and physical parameters (such as form and dimensions, weight,cross clause, distance between fixings) and material parameters (such as type of material,specific gravity, material mechanical properties) are known and can be duly specified.

-通过表 1.1.1 中所示的机械固定装置进行机械连接

机械固定件的几何和物理参数（如形状和尺寸、重量、交叉构件、固定件之间的距离）以及材料参数（如材料类型、比重、材料力学性能）均已知并可适当予以具体说明。

A combination between both attachment modes (adhesively and mechanically attached) is also possible.

两种连接方式（粘合性连接和机械性连接）的结合也是可能的。

Exceptionally, for VETURE kits family C and family D (see table 1.1.1) there may not be any skin-attachment as such but directly the VETURE fixing device.

例外的是，对于 VETURE 套件家族 C 和家族 D（见表 1.1.1）而言，可能并不存在任何皮肤附件这类东西，而是直接采用 VETURE 紧固装置。

2. VETURE fixing devices such as rails, profiles or punctual fixings as indicated in table 1.1.1

2. VETURE固定装置，如表 1.1.1 中所示的轨道、型材或点式固定件

Optional retaining devices may also be considered (mainly for VETURE kits family A or family B).

可选的固定装置也可被纳入考虑范围（主要用于 VETURE 套件系列 A 或系列 B）。

Fixing or retaining devices geometric and physical parameters (such as form and dimensions, weight,cross clause, distance between fixings) and material parameters (such as type of material, specific gravity, material mechanical properties) are known and can be duly specified.

固定或保持装置几何和物理参数（如形状和尺寸、重量、交叉构件、固定点之间的距离）以及材料参数（如材料类型、比重、材料力学性能）是已知的，且可以适当予以具体说明。

3. Anchors between the VETURE fixing device and the substrate (optional).

3. 位于 VETURE 固定装置与基材之间的锚固件（可选）。

Anchors geometric parameters (such as form and dimensions) and material parameters (such as type of material, mechanical properties) are known and can be duly specified.

锚具的几何参数（如形状和尺寸）以及材料参数（如材料类型、力学性能）都是已知的，且可以适当予以具体说明。

4. Other ancillary components (optional):

4. 其他辅助部件（可选）：

·Grout or sealant material for the joints between the VETURE units (e.g. for tiles according to EN138882

Grout or sealant the type of material, range of thickness application, water quantity ratio (if relevant),coverage and density are known and can be duly specified.

·用于 VETURE 单元之间接缝处的填缝剂或密封材料（例如适用于瓷砖，符合 EN138882 标准）

填缝料或密封剂：材料的类型、厚度范围、应用方式、水含量比例（若适用）、覆盖面积及密度均已知并可适当予以具体说明。

·Supplementary thermal insulation products. Factory made thermal insulation products usually made of the same material than the considered in the VETURE unit.

Thermal insulation products type of material, dimensions, density or weight per square meter andwater absorption are known and can be duly specified

·附加保温产品。工厂生产的保温产品通常与 VETURE 单元中所考虑使用的材料相同。

隔热制品的材质类型、尺寸、每平方米的密度或重量以及吸水性均已知并可适当加以说明

·Any other supplementary component used in the kit (e.g. to form joints such as sealant, corner strips, etc.; or to achieve continuity such as mastic, joint-covers, gaskets, trims, etc.; or to keep the position of the VETURE unit such as springs, groove protectors, etc.).

Ancillary components geometric parameters (such as form and dimensions) and material parameters (such as type of material, mechanical properties) are known and can be duly specified.

·该套件中使用的任何其他辅助部件（例如用于形成接合点（如密封剂、角条等）；或用于实现连续性（如胶泥、接缝覆盖物、垫圈、装饰条等）；或用于保持 VETURE 单元的位置（如弹簧、凹槽保护器等））。

辅助部件的几何参数（如形状和尺寸）以及材料参数（如材料类型、机械性能等）均已知并可适当予以具体说明。

Table 1.1.2 indicates the materials related to these components and the possible associated component harmonized technical specifications.

表 1.1.2 列出了与这些组件相关的材料以及可能与之相关联的组件统一技术规范。

The VETURE kits covered by this EAD always include the VETURE unit (skin and thermal insulation product).

本 EAD 所涵盖的 VETURE 套件始终包含 VETURE 单元（外壳与隔热产品）。

There may be a non-ventilated air space between the VETURE unit and the substrate.

VETURE单元与基材之间可能存在一个非通风的空隙。

Two categories of VETURE kits, classified according to the degree of protection against driving rain are considered:

VETURE套件分为两类，根据其对行车雨水的防护程度进行了分类：

-Type I: a VETURE kit which significantly limits the amount of water that can reach the substrate and also includes arrangements for collecting and expelling infiltrating water (for instance, VETURE kits with open joints with a pressure equilibrium space and drainage arrangements).

-类型 I: 一种 VETURE 套件，它能显著限制到达基材表面的水量，同时还包含用于收集和排出渗入水的装置（例如，带有开放接缝、具有压力平衡空间和排水装置的 VETURE 套件）。

-Type II: a VETURE kit in which the outer skin avoids the penetration of water, and therefore protects the inner part of the VETURE kit and the joints between the VETURE units from water penetration.

-类型 II: 一种 VETURE 套件，其外层可有效防止水渗透，从而保护 VETURE 套件内部部件以及 VETURE 单元之间的连接部位免受水浸影响。

The product is not covered by EAD 040083-00-0404 (ETAG 004 conversion) or EAD 040287-00-0404 because it is composed of a prefabricated unit (whereas the ETICS components are installed in-situ) and it is fixed to the substrate by purely mechanically fixings

该产品并不包含在 EAD 040083-00-0404（ETAG 004 转换）或 EAD 040287-00-0404 的涵盖范围内，因为它由预制单元构成（而 ETICS 组件则是现场安装的），并且是通过纯粹的机械固定方式固定在基材上的

The VETURE kits are non-load bearing construction elements. They do not contribute to the stability of the wall on which they are installed. The VETURE kits can contribute to durability of the works by providing enhanced protection from the effect of weathering. They are not intended to ensure airtightness of the building.

VETURE组件均为非承重结构构件。它们不会对其所安装的墙体的稳定性产生影响。VETURE组件可通过提供更强的防护作用来抵御风化影响，从而有助于提升工程的耐久性。然而，它们并非旨在确保建筑的气密性。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise its clients on the transport, storage, maintenance, replacement and repair of the product as it considers necessary.

在产品包装、运输、储存、维护、更换和修理方面，制造商有责任采取适当措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假定该产品将按照制造商的说明进行安装，或者（在无此类说明的情况下）遵循建筑专业人士的一般惯例进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

用于外墙保温的预制单元及其固定装置ce认证法规-ETA认证

用于外墙保温的预制单元及其固定装置产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

用于外墙保温的预制单元及其固定装置ce认证模式

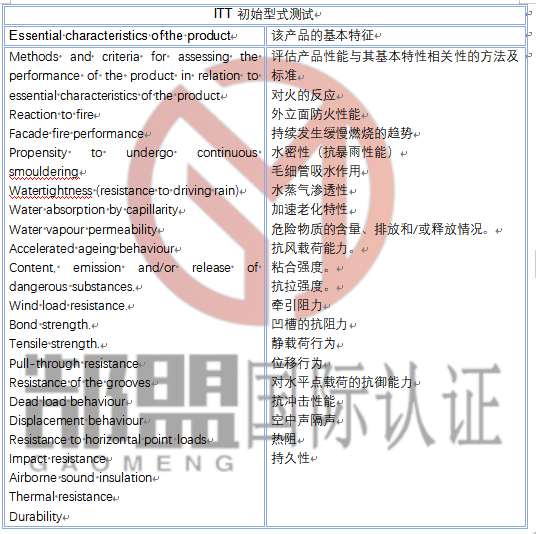

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
