EAD 040949-00-1201: 2019由木屑制成的矿物胶合板CE认证/ETA认证详解-上海郜盟

b2a403568721380ca8862297020d86fd

由木屑制成的矿物胶合板ce认证标准-ETA认证

EAD 040949-00-1201: 2019

Minerally-bonded boards made of wood chips

由木屑制成的矿物胶合板

fcb8f657-7dcc-443e-8e2c-561fc0f69c96

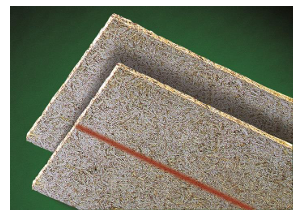

The product "Minerally-bonded boards made of wood chips" (non-structural building and insulating boards) is manufactured from a mixture of loose wood chips, mineral binder and optional colouring agents. The mixture is compressed to different final thicknesses of minerally-bonded boards made of wood chips(referred to also as "board" or "boards" in the further text, see Figure 1.1.1).

上海郜盟提示产品“由木屑制成的矿质粘合板”(非结构性建筑及隔热板)系由松散木屑、矿质粘合剂及可选着色剂混合而成。该混合物被压缩至不同最终厚度的由木屑制成的矿质粘合板上(在后续内容中亦简称为“板”或“板材”，见图1.1.1)。

The boards are made with or without shape texture (profiled boards, see Figure 1.1.4). Various insulation materials according to Clause 1.3.4 (products according to EN 13162, EN 13163, EN 13168, EN 13167,EN 13169, EN 13170 or EN 13171) can be subsequently glued to the boards. Such composite boards consist of up to three layers in total (see Figures 1.1.2 and 1.1.3).

这些板材既可能带有形状纹理(有轮廓的板材，见图1.1.4)，也可能不带此类纹理。根据第1.3.4条的规定(产品应符合EN13162、EN13163、EN13168、EN13167、EN13169、EN13170或EN13171标准的要求)，随后可将这些绝缘材料胶合到板材上。此类复合板材总共有至多三层结构(见图1.1.2和1.1.3)

The boards can be flat or profiled.

板材可以是平面的或有型材的。

The products are not fully covered by EN 13168, which is valid for products made of wood wool with long shavings of wood with a length to width ratio 20:1. This EAD applies to products made of wood chips with a different length to width ratio.

这些产品并未完全涵盖在EN13168标准范围之内。该标准适用于由木材纤维制成、带有长木屑(其长度与宽度之比达到20:1)的产品。本EAD适用于由木屑制成、但长度与宽度之比有所不同的产品

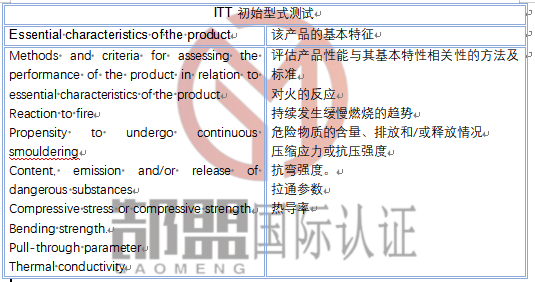

Furthermore, the products are not fully covered by EN 13168 because EN 13168 does not contain assessment methods for the essential characteristics

此外，产品未完全被EN13168覆盖，因为EN13168不包含对基本特性的评估方法。

·propensity to undergo continuous smouldering

易于持续阴燃的倾向

·content, emission and/or release of dangerous substances and

危险物质的含量、排放和/或释放以及

·pull-through parameter.

拉伸参数

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport,storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

I is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)按照建筑专业人士通常的做法进行安装

Relevant manufacturer's stipulations, e.g. with regard to the intended end use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected.

相关制造商的规定(例如关于预期最终使用条件的规定)将对本欧洲评估文件所涵盖产品的性能产生影响，在确定性能并详细阐述相关内容时，应予以考虑，但前提是需遵守本评估文件中规定的评估方法的各项细则。

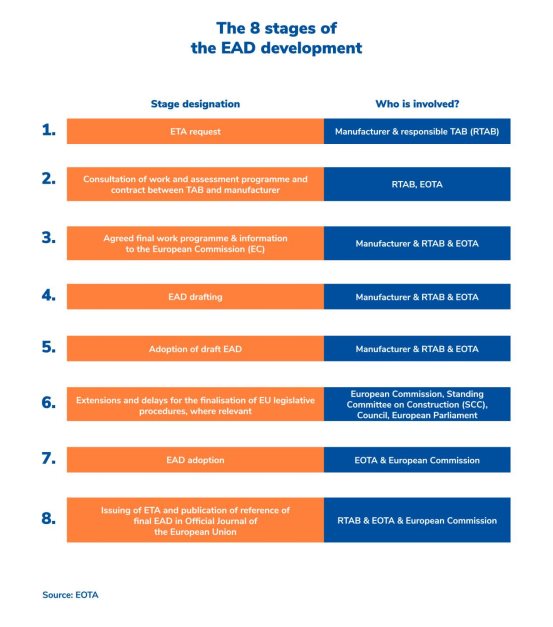

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

由木屑制成的矿物胶合板ce认证法规-ETA认证

由木屑制成的矿物胶合板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

由木屑制成的矿物胶合板ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

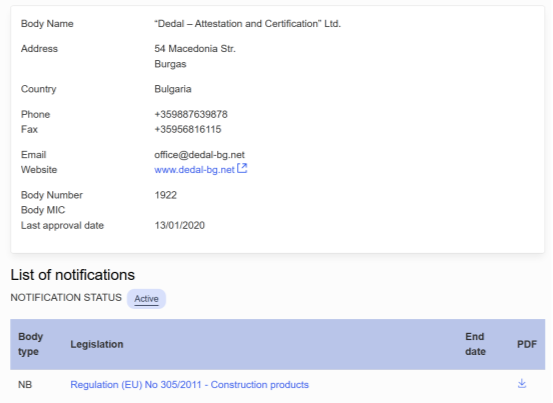

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
