由再生聚氨酯制成的绝缘板ce认证标准-ETA认证

EAD 041369-00-1201: 2019

Insulating boards made of recycled polyurethane to be used as acoustic and thermal insulation

由再生聚氨酯制成的绝缘板，适用于声学及热学绝缘用途

The insulating boards made of recycled PUR (polyurethane) to be used as acoustic and thermal insulation (in the following referred to as the insulating boards) are made from 100 % recycled polyurethane material with a poly-isocyanate bonding agent manufactured in a hot press process and with a thermal conductivity of > 0.06 W/mK.

上海郜盟提示由再生聚氨酯(PUR)制成的绝缘板将被用作声学及热绝缘材料(以下统称为绝缘板)。这些绝缘板由100%的再生聚氨酯材料制成，内含一种由热压工艺生产的多异氰酸酯粘合剂，其热导率大于0.06W/mK。

The recycled polyurethane materials are residual materials (milling and cutting residues) from manufacturing of virgin material boards.

回收的聚氨酯材料是原生材料板制造过程中产生的残余物(研磨和切割残留物)。

The product is in terms of dimensions described in accordance with sections 4.2.2, 4.2.3, 4.2.4 and 4.2.5 EN 131651.

产品的尺寸应符合EN13165标准第4.2.2、4.2.3、4.2.4和4.2.5节的规定。

The product is not fully covered by harmonised European standard EN 13165, since this standard does not cover rigid boards made from recycled material, and in addition, the standard does not cover products having a thermal conductivity of > 0.06 W/mk).

该产品并未完全符合统一的欧洲标准EN13165，因为该标准并不涵盖由再生材料制成的硬质板，此外，该标准也不涵盖热导率大于0.06W/mK的产品。

Concerning product packaging, transport, storage, maintenance, replacement and repair, it is the responsibility of the manufacturer to undertake the appropriate measures and issue - when necessary- adequate advice to the clients.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在必要时向客户发布适当的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual professional building practices.

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据通常的专业建筑实践进行安装。

Relevant manufacturer's information having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的信息，这些信息会对产品性能产生影响，相关内容将在ETA中详细阐述。

What is an EAD?什么是EAD？

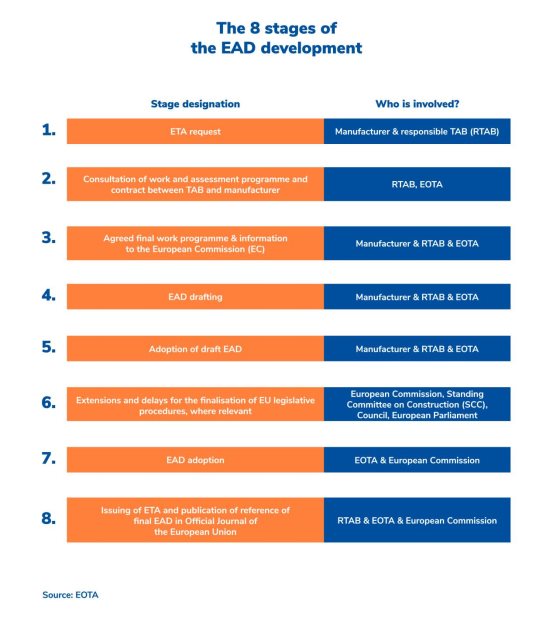

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

由再生聚氨酯制成的绝缘板ce认证法规-ETA认证

由再生聚氨酯制成的绝缘板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

由再生聚氨酯制成的绝缘板ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

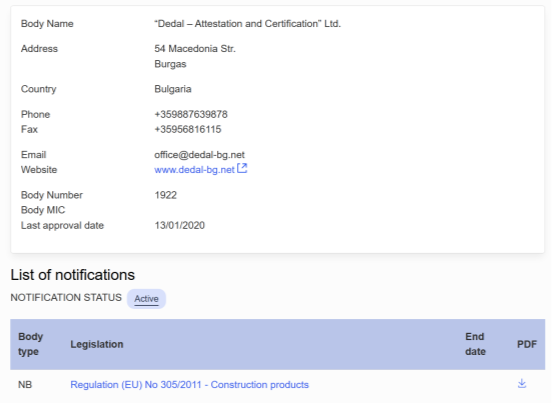

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
