用于热绝缘和声学绝缘的胶合天然软木板ce认证标准-ETA认证

EAD 041389-00-1201: 2019

BOARDS MADE OF AGGLOMERATED NATURAL CORK FOR THERMAL AND ACOUSTIC INSULATION

用于热绝缘和声学绝缘的胶合天然软木板

Construction products to be covered by this EAD are specific factory made thermal and acoustic insulation products of granulated natural cork agglomerated with an additional binder in the form o boards and without facings

上海郜盟提示本EAD所涵盖的建筑产品包括特定工厂生产的热绝缘和声学绝缘产品，此类产品由颗粒状天然软木经胶合制成，以板状形式呈现，且表面无覆层。

The additional binder considered in this EAD is an organic binder based either on polyurethane resin (PU) or on urea-formaldehyde resin (UF).

本EAD中考虑的附加粘合剂是一种基于聚氨酯树脂(PU)或尿素甲醛树脂(UF)的有机粘合剂。

Insulation boards of used or recycled cork (other than waste and by-products generated in the production process) or those including some additive (e.g. flame/fire retardants, biocides, BaP-bituminous based binders) are not considered in this EAD.

本EAD不涉及使用或回收软木制成的绝缘板(不包括生产过程中产生的废料和副产品)或含有某些添加剂(如阻燃剂、生物杀灭剂、基于沥青的苯并[a]芘粘合剂等)的绝缘板。

The minimum thickness of the agglomerated natural cork board is 20 mm, and the density range is between130 and 240 kg/m. The commonly linear dimensions of the boards are 1 000 mm in length and 500 mm in width.

聚结式天然软木板的最低厚度为20毫米，密度范围介于130至240千克/立方米之间。板件的常用线性尺寸为长度1000毫米、宽度500毫米。

The boards made of agglomerated natural cork are not covered by EN 13170:2012+A1:2015 because:

·The product does not consist of expanded cork

·The product is made of granulated natural cork agglomerated with an additional binder.

由胶合天然软木制成的板材不适用于EN13170:2012+A1:2015，因为:

·该产品不包含膨胀软木

·该产品由颗粒状天然软木与额外粘合剂混合制成。

Besides this, the following essential characteristics are covered in addition to EN 13170:2012+A1:2015:

·Propensity to undergo smouldering combustion (no test method is described in EN 131701)

·Content, emission or release of dangerous substances (no test and assessment methods are described in EN 13170)

·Biological resistance (no test method is described in EN 13170)

此外，除EN13170:2012+A1:2015外，还涵盖以下基本特性:

·易发生阴燃的倾向(EN131701中未描述测试方法)

·危险物质的含量、释放或排放(EN13170中未描述测试和评估方法)

·生物耐受性(EN13170中未描述测试方法)

The construction products are hereinafter referred to as insulation boards.

以下所称的建筑产品称为保温板。

The EAD applies to the insulation boards. All other ancillary components which are necessary to fix the boards are not considered as part of the product covered by the EAD.

EAD适用于绝缘板。所有其他用于固定板材的辅助组件均不被视为EAD所涵盖产品的组成部分。

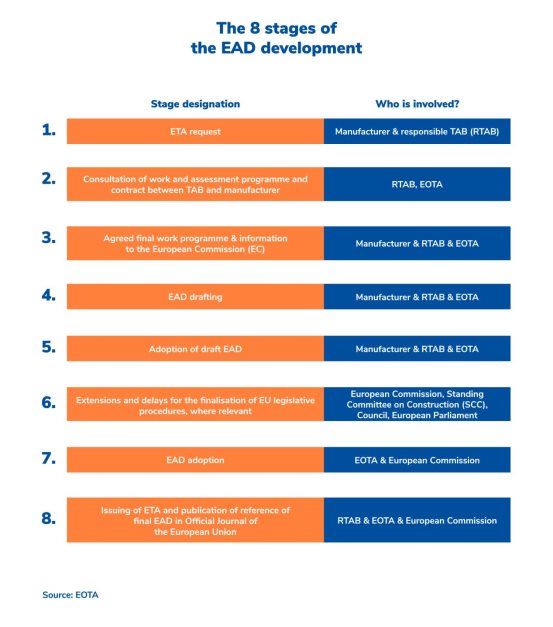

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

用于热绝缘和声学绝缘的胶合天然软木板ce认证法规-ETA认证

用于热绝缘和声学绝缘的胶合天然软木板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

用于热绝缘和声学绝缘的胶合天然软木板ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

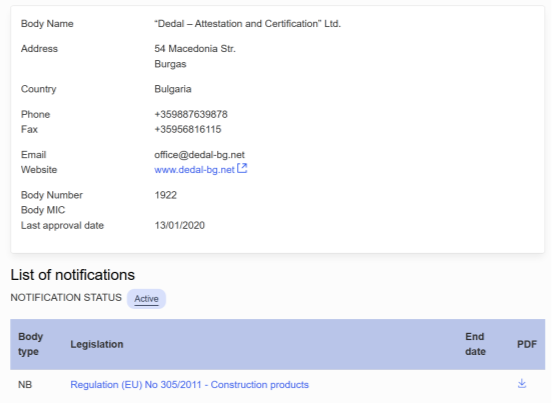

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
