用于热绝缘和冲击声学隔热的天然软木基垫材ce认证标准-ETA认证

EAD 042051-00-0502: 2022

Natural cork-based mats to be used for thermal and impact sound insulation

用于热绝缘和冲击声学隔热的天然软木基垫材

The construction product is a natural cork-based mat for thermal insulation and impact sound insulation,hereinafter referred to as "natural cork-based mat". The factory-made natural cork-based mats are composed of natural cork granules and a polyurethane prepolymer as binding agent. The natural cork-based mats can contain an admixture of recycled granules of other materials, such as recycled rubber or recycled ethylene-vinyl acetate (EVA) foam or both. The natural cork-based mats can have a profiled surface and optional layers (e.g., foil, vapour barrier, self-adhesive film). Additives may be used to improve the reaction to fire classification or microbiological behaviour. Natural cork-based mats can be made of cork granules, expanded granulated cork, expanded pure agglomerated cork, regranulated cork, composite agglomerated cork or recovered granulate. Synthetic cork-based mats are outside the scope of this EAD.

上海郜盟提示该建筑产品是一种以天然软木为基材的隔热及减震隔音垫，以下简称为“天然软木垫”。工厂生产的天然软木垫由天然软木颗粒和一种聚氨酯预聚物作为粘合剂组成。天然软木垫可能含有其他材料的回收颗粒混合物，如回收橡胶或回收乙烯-乙酸乙烯酯(EVA)泡沫，或两者兼有。天然软木垫可能具有有型表面和可选层(例如箔层、防潮层、自粘膜等)。添加剂可用于改善对防火等级或微生物行为的反应性能。天然软木基垫板可由软木颗粒、膨胀粒状软木、膨胀纯凝聚软木、再生软木、复合凝聚软木或回收粒料制成。合成软木基垫板则不在本EAD的适用范围之内。

The relevant properties for the description of the natural cork-based mat are: length and width, nominal thickness, squareness and mass per unit area.

描述天然软木基垫材的相关属性包括:长度和宽度、标称厚度、方正度以及单位面积质量。

The product is not fully covered by the following harmonised technical specifications:

·EN 131701:The product deviates from the scope of this standard regarding:

(1) its thickness, which can be less than 20 mm,

(2) its composition, that may contain an admixture of granules of other recycled materials, cork granules other than of expanded cork, and where there is an addition of a prepolymer of polyurethane as a binder and

(3) its intended use.

该产品未完全涵盖以下协调技术规范:

·EN 131701:该产品在以下方面偏离了本标准的范围:

(1)其厚度，可小于20毫米，

(2)其构成成分，其中可能包含有其他再生材料颗粒的混合料、非膨胀软木制成的软木颗粒，以及作为粘合剂而添加的聚氨酯预聚物

(3)其预期用途。

EN 13170 does not cover the following essential characteristics which are relevant for natural cork-based mats: biological resistance, compressive strength at O.5 mm, deformation for underlays.dynamic load resistance for underlays, mass per unit area and impact sound reduction.

EN13170并未涵盖以下与天然软木基垫材相关的关键特性:生物耐受性、0.5毫米处的抗压强度、衬垫的变形性、衬垫的动态荷载抗御能力、单位面积质量以及减振降噪性能。

EN 13170 includes some essential characteristics which are not relevant for the natural cork-based mats, due to their intended use as parts of a floor system, or under a floor covering (underlay) or under a floating screed, or comparable build-ups on solid slab (underscreed); the not relevant essential characteristics are: water absorption, air flow resistivity and sound absorption. In addition,the point load characteristic is not applicable to the natural cork-based mats used under a screed and, in case of natural cork-based mats used as underlays, a deformation of 5 mm is not possible to apply considering the usual thicknesses of products used as underlays

EN13170包含了一些并非适用于天然软木基垫板的重要特性，因为这些垫板旨在作为地板系统的一部分使用，或置于地板覆盖层(底层材料)之下、或浮式垫层之下，或类似结构于实心板(底层结构)之上。这些不相关的关键特性包括:吸水性、空气流通阻力和吸音性能。此外，点载荷特性并不适用于在垫层下使用的天然软木基垫板。对于用作底层材料的天然软木基垫板而言，考虑到通常用于底层材料的产品厚度，5毫米的变形量是不可能实现的。

EAD 040313-00-1201: because it covers loose fill product;

EAD 040313-00-1201:因为它涵盖松散填充产品;

EAD 040369-01-1201: because it covers loose fill product;

EAD040369-01-1201:因为它涵盖松散填充产品;

EAD 041389-00-1201: because it covers boards (not mats) being the minimum thickness 20 mm and in the case of mats covered by this EAD the thickness can be less than 20 mm. Also, in accordance with EN ISO 9229 a "Board" is a rigid or semi-rigid thermal insulation product of rectangular shape and cross-section in which the thickness is uniform and substantially smaller than the other dimensions and a "Mat" is a flexible fibrous thermal insulation product supplied rolled or flat, which may be faced or enclosed;

EAD041389-00-1201:因为它涵盖了板材(而非垫片)这一类别，其最小厚度为20毫米。而在使用本EAD所涵盖的垫片的情况下，其厚度可能低于20毫米。此外，根据ENISO9229标准，“板”是一种刚性或半刚性热绝缘产品，具有矩形形状和横截面，其厚度均匀且显著小于其他尺寸;“垫片”则是一种柔性纤维状热绝缘产品，以卷筒或平板形式供应，表面可能覆有面层或被封装

EAD 190010-00-0502: because it covers only underlays (not underscreeds) with PU foam, being that raw material outside of the scope of this EAD.

EAD 190010-00-0502:因为它仅涵盖使用PU泡沫的垫层(非底板)，而该原材料不在本EAD范围内。

Comparing to EN 13170. given the specificities of the products under the scope of this EAD, the assessment methods of the following characteristics are further developed or adapted to the natural cork-based mat in the EAD: reaction to fire, squareness, content, emission and/or release of dangerous substances compressive creep, deviations from length and width, thickness, thickness d and compressibility.

与EN13170相比，鉴于本EAD范围内所涉产品的特性，对以下特性的评估方法得到了进一步的细化或调整，以适应EAD中天然软木垫的情况:对火的反应、平整度、含量、危险物质的排放或释放、压缩蠕变、长度和宽度的偏差、厚度、厚度d以及可压缩性

deformation in thickness under specified load and temperature, dimensional stability, tensile strength perpendicular to faces, thermal conductivity and thermal resistance and water vapour resistance,

在规定载荷和温度下的厚度变形、尺寸稳定性、垂直于表面的抗拉强度、热导率与热阻以及防潮性能，

Concering product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manutacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations, e.g, with regard to the intended end use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected.

相关制造商的规定(例如关于预期最终使用条件的规定)将对本欧洲评估文件所涵盖产品的性能产生影响，在确定性能时需予以考虑，相关内容将详细载于ETA中，前提是须遵守本EAD中所规定的评估方法的各项细则。

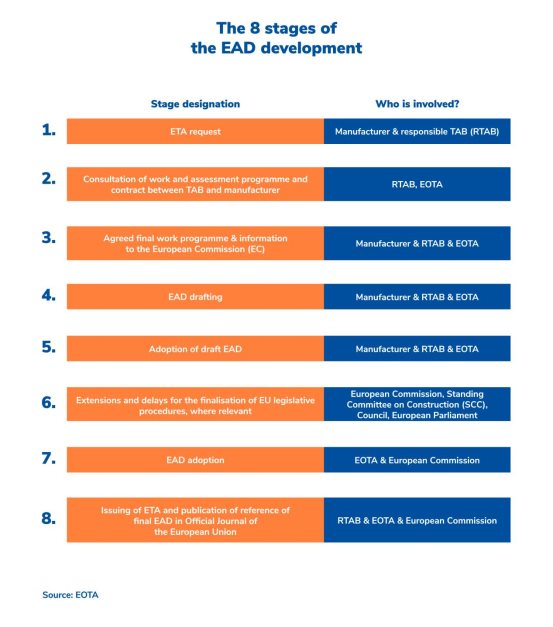

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

用于热绝缘和冲击声学隔热的天然软木基垫材ce认证法规-ETA认证

用于热绝缘和冲击声学隔热的天然软木基垫材产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

用于热绝缘和冲击声学隔热的天然软木基垫材ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

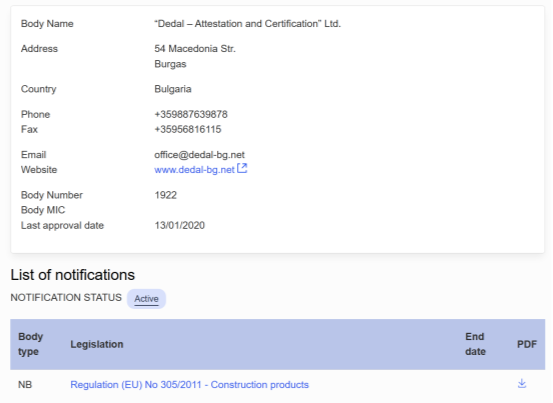

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
