EAD 200086-00-0602: 2017线环连接产品CE认证/ETA认证详解-上海郜盟

线环连接产品ce认证标准-ETA认证

EAD 200086-00-0602: 2017 WIRE RING CONNECTION PRODUCTS 线环连接产品

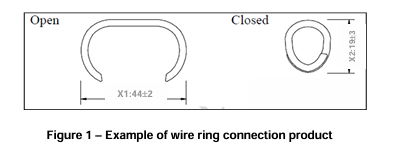

The wire ring connection products are ring (or similar shape) products made of steel wire with non-ferrous metallic coating or of stainless steel (for some example, see Figure 1) used to connect the woven and/or welded wire meshes, gabion panels or gabions together

上海郜盟提示钢丝环连接产品是由带有色金属涂层的钢丝或不锈钢制成的环状(或类似形状)产品(示例见图1)，用于将编织和/或焊接金属网、石笼板或石笼相互连接。

The connections with ring connection products are executed by hand or by pneumatic stapler. The units to be connected are put tightly together so that the edge wires are in contact with the edge wires of both adjacent walls. For example, see Figure 2 (connection of hexagonal double twisted wire mesh panels with wire ring connection products).

与环接产品的连接通过手工或气动钉书器完成。待连接的单元紧密贴合，使边缘导线与相邻两侧墙体的边缘导线相接触。例如，见图2(六角双扭金属丝网板与金属环接产品的连接)

The product is not covered by a harmonised European standard (hEN).

该产品未被统一的欧洲标准(hEN)覆盖。

Concerning product packaging. transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并就其认为必要的产品运输、储存、维护、更换和维修事宜向客户提供建议。

It is assumed that the product will be installed according to the manufacturer's instructions. These instructions shall contain recommendation for design about appropriate use and assessment of product regarding aggressiveness of environment in which the work is to be executed.

假定产品将按制造商的说明进行安装。这些说明应包含关于适当使用的建议，以及针对工作执行环境中的腐蚀性对产品的评估建议。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

相关制造商的规定对本欧洲评估文件所涵盖产品的性能具有影响，应在确定性能时予以考虑，并在ETA中详细说明。



What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。



线环连接产品ce认证法规-ETA认证

线环连接产品产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】



线环连接产品ce认证模式

TAB机构测试+ETA认证， 由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。

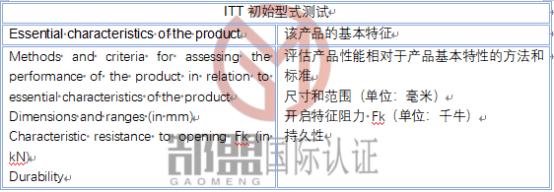

线环连接产品ce认证测试哪些项目

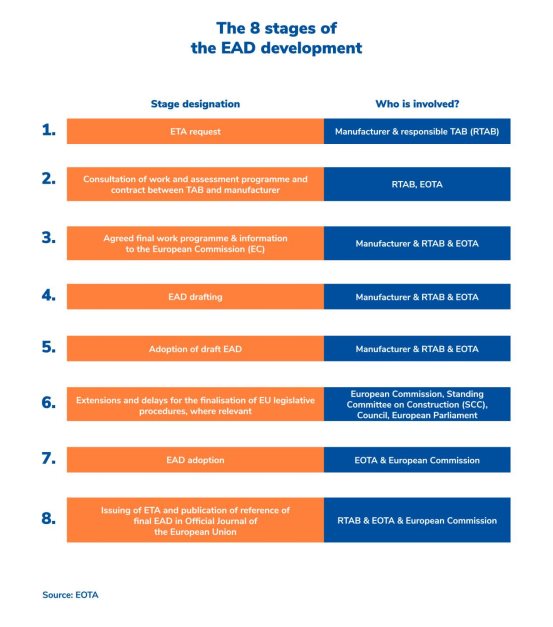

EAD认证流程







线环连接产品ce认证机构

公告号机构NB1922,拥有欧盟全品类建材产品授权，上海郜盟拥有该机构直接授权，上海办公室审核员可直接代表机构进行工厂审核，大大减少工厂的差旅成本和时间成本

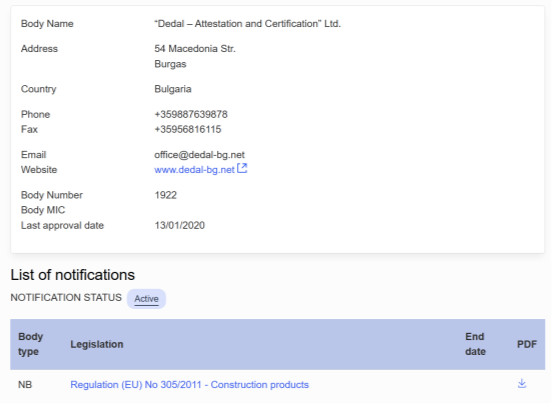

NB1922欧盟官网资质：



上海郜盟，专业CE认证服务，丰富的行业经验以及专业的工程师可帮助中国工厂快速通过合规评定，取得CE证书！！



---
