承重外墙与隔墙套件ce认证标准-ETA认证

EAD 200207-00-0302: 2020

LOAD-BEARING EXTERNAL WALL AND PARTITION WALL KIT

承重外墙与隔墙套件

The load-bearing external wall and partition wall kit consists of I-shaped studs made of a composite of galvanised steel, aluminium or stainless steel and hard-compressed stone wool to fit in a bottom and top channel, filled in with mineral wool assembled on site.

上海郜盟提示承重外墙和隔墙组件由I型立柱构成，立柱采用镀锌钢、铝或不锈钢与硬质压缩石绵的复合材料制成，安装于底部和顶部槽内，内部填充矿棉，并在现场组装。

On the external flange of a stud, an external spacer made of stone wool is pre-mounted. Fasteners for masonry and light-weight cladding are part of the external spacers (exterior facing is not part of the kit). On the internal flange, vapour retarding OSB4 boards are mounted on site, providing racking strength and air tightness

在柱的外部凸缘上，预装有一个由岩棉制成的外部间隔件。用于砌体和轻质覆层材料的紧固件属于该外部间隔件的一部分(外表面不属于套件)。在内部凸缘上，现场安装防潮OSB4板材，以提供支撑强度和气密性。

The studs are fixed to a bottom U-shaped steel channel by angle brackets, which are mounted to the substrate with bolts or screws. A similar top channel is fixed to the studs. All steel is protected against corrosion by an inorganic zinc coating, at least grade Z275 according to EN 103461 or made from aluminium according to EN 755-1 or EN ISO 7599 or from stainless steel according to EN 10088.

立柱通过角钢支架固定在下部U形钢槽上，该支架使用螺栓或螺钉安装在基板上。类似的上部槽也固定在立柱上。所有钢材均通过无机锌涂层进行防腐保护，至少符合EN103461标准的Z275等级，或由符合EN755-1或ENISO7599标准的铝制成，或由符合EN10088标准的不锈钢制成。

Stone wool insulation is fitted between the flanges of the pre-manufactured studs as well as top and bottom channel without gaps, i.e. the stone wool is held in position by the steel members. Due to the mechanical properties of the medium density stone wool, the studs will be physically supported by the stone wool under extreme conditions.

岩棉保温层被安装在预制立柱的法兰之间以及顶部和底部的槽内，且无间隙，即岩棉由钢构件固定到位。由于中密度岩棉的机械性能，在极端条件下，立柱将受到岩棉的物理支撑。

Stone wool insulation is placed between the external spacers of the studs. This light-weight insulation minimizes thermal bridges and provides sufficient fire protection.

石棉保温材料放置在龙骨的外部垫块之间。这种轻质保温材料可最小化热桥，并提供足够的防火保护。

A service void is built up by internal spacers made of stone wool on the inside of the OSB layer. The service void is insulated with light-weight stone wool and finished by gypsum fibre boards (not part of the kit).

服务空腔通过在OSB层内侧使用岩棉制成的内部隔条构建而成。该服务空腔采用轻质岩棉进行保温，并以石膏纤维板饰面(不属于套件部分)。

See annex A for an overview of the kit

请参阅附录A以了解套件概览。

The product is not covered by a harmonized technical specification.

该产品不受统一技术规范的覆盖。

Concerning product packaging transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)按建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对本欧洲评估文件所涵盖产品的性能有影响的相关制造商规定，应在确定性能时予以

考虑，并在ETA中详细说明。

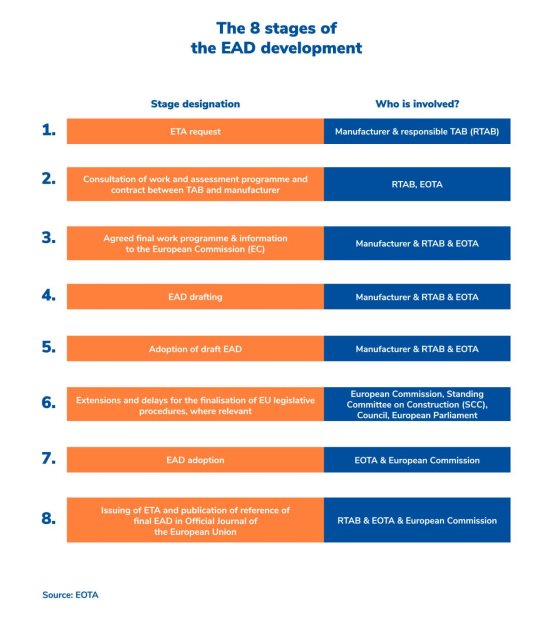

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

承重外墙与隔墙套件ce认证法规-ETA认证

承重外墙与隔墙套件产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

承重外墙与隔墙套件ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

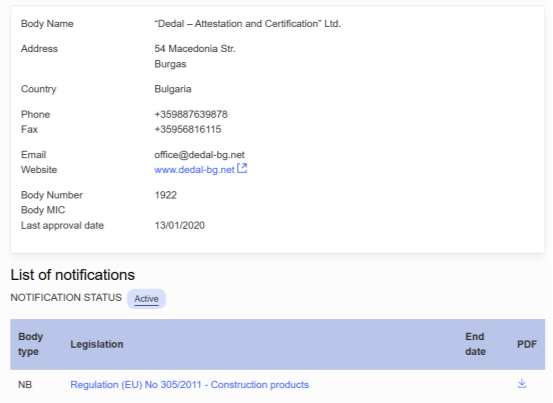

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
