管状部分连接器ce认证标准-ETA认证

EAD 200345-00-0103: 2023

Connectors for tubular sections

管状部分连接器

1fc23eb6-5cdb-42ad-86f2-8140dbd93790

This EAD covers connectors for tubular sections to connect tubular sections (steel pipes) to transfer static loads (in the following referred to as "connector"). The connector is made of steel or stainless steel. The connector is uncoated or treated with an inorganic coating, but not with an organic coating.

上海郜盟提示本EAD涵盖用于连接管状构件(钢管)以传递静载荷的管状构件连接器(下文简称“连接器”）。该连接器由钢或不锈钢制成，表面未涂覆或经过无机涂层处理，但不含有机涂层。

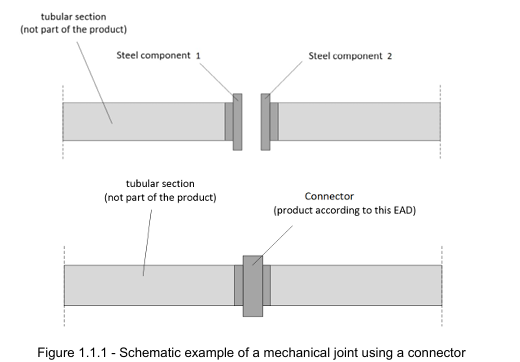

The connector consists of 2 steel components that are welded on tubular sections and plugged into each other to connect the tubular sections mechanically. The plugged connection can be fixed by optional components, e.g., bolts, screws, steel pins, steel blocks (possibly ring-shaped) A schematic example of a joint is shown in the following figure.

该连接器由两个钢制部件组成，这些部件焊接在管状段上，并通过相互插入的方式实现管状段的机械连接。这种插入式连接可通过可选部件(例如螺栓、螺钉、钢销、钢块(可能为环状))进行固定。一个连接节点的示意图如下所示。

The connector transmits forces such as tensile and compressive forces, shear forces, bending moments and torsional moments between the tubular cross sections.

连接器在管状截面之间传递拉伸力、压缩力、剪切力、弯矩和扭转力等作用力。

This EAD applies to products whose material properties comply to the relevant European Standards in accordance with EN 1090-21, clause 5.1 (constituent products), or the properties of the materials are specified accordingly

本EAD适用于材料性能符合相关欧洲标准(依据EN1090-21第5.1条(组成产品))的产品，或材料性能已相应明确规定的产品

For all components of the product the following parameters with the associated test methods are considered material properties:

-Tensile strength properties in analogy to EN ISO 6892-1, clauses 11 to 21, and

-Charpy v-notch impact properties in analogy to EN ISO 148-1.

对于产品的所有组件，以下参数及其相关测试方法均被视为材料属性：

-拉伸强度性能参照 EN ISO 6892-1 标准第 11 至 21 条，以及

-夏比V型缺口冲击性能，参照EN ISO 148-1标准。

And for components to be welded (components 1 and 2), the following additional material properties are considered:

-Chemical composition (CEV) (weldability)in accordance with EN 10025-1, clause 7.2.3The product is not covered by a harmonised European standard (hEN).

而对于需要焊接的部件（部件1和部件2），还需考虑以下材料属性：

-化学成分（CEV）（可焊性）符合 EN 10025-1 第 7.2.3 条规定。该产品未涵盖协调的欧洲标准（hEN）。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并就其认为必要的产品运输、储存、维护、更换和维修事宜向客户提供建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations, e.g., with regard to the intended end use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected

相关制造商的规定(例如，关于预期最终使用条件)，只要遵守本欧洲评估文件(EAD)中规定的评估方法细节，即应予以考虑，用于确定性能并在欧洲技术认证(ETA)中详细说明。

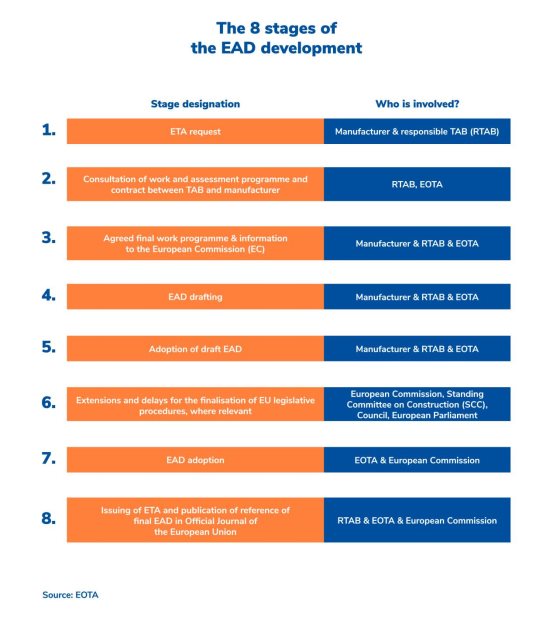

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

管状部分连接器ce认证法规-ETA认证

管状部分连接器产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

管状部分连接器ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

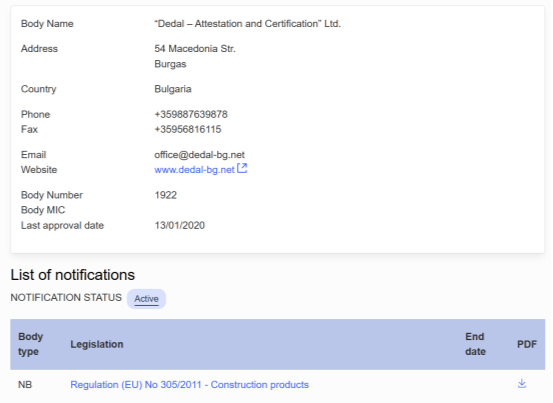

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
