带端部连接器的纤维绳ce认证标准-ETA认证

EAD 200379-00-0602: 2024

Fibre ropes with end connectors

带端部连接器的纤维绳

6a034ef8-3b94-4ded-8776-99c27a5a34b9

The construction product is a fibre rope with end connectors (terminations) in which the rope is anchored by its end portions. The end connectors are resin filled sockets of stainless steel or galvanisedpainted carbon steel, which are produced in accordance with EN 13411-41 and EN 1993-1-11, Annex C, section C.3. The rope is composed of braided strands of high modulus polyethylene (HMPE) fibers in accordance with EN ISO 10325, with known breaking force and elongation in accordance with EN ISO 2307. The approximate diameter of the rope ranges from 6 to 30 mm.

上海郜盟提示该建筑产品为带端部连接件(终端)的纤维绳索，其通过端部锚固。端部连接件为填充树脂的不锈钢或镀锌/涂漆碳钢套筒，按照EN13411-41和EN1993-1-11附录C第C.3节生产。绳索由符合ENISO10325的高模量聚乙烯(HMPE)纤维编织股组成，其破断力和伸长率符合ENIS02307。绳索的近似直径范围为6至30毫米。

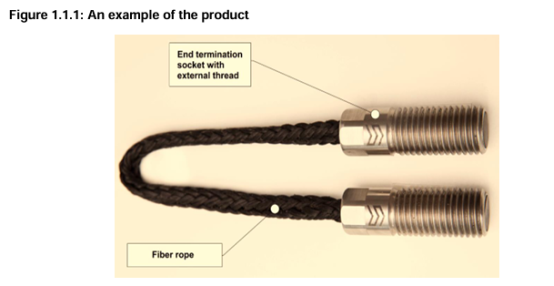

An example of the product is illustrated in Figure 1.1.1.

该产品的示例如图1.1.1所示。

The fibre rope with end connectors is installed between a non-structural element (e.g. facade panel, electrical/mechanical installation element, equipment) and the primary or secondary structural element of the building via anchors and special fastening elements. The product may pass-through elements made of concrete. Anchors and special fastening elements are not covered by this EAD.

带端部连接器的纤维绳索通过锚固件和特殊固定件，安装在非结构构件(例如:幕墙面板、电

气/机械安装构件、设备)与建筑物的主结构或次结构构件之间。该产品可穿过混凝土制成的构件。锚固件和特殊固定件不在本EAD涵盖范围内。

The product is not covered by a harmonised European standard (hEN).

该产品不受欧洲统一标准(hEN)的覆盖。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并视需要就产品的运输、储存、维护、更换和维修向客户提出建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations, e.g., with regard to the intended end use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected.

相关制造商的规定(例如，关于预期最终使用条件)，只要遵守本欧洲评估文件(EAD)中规定的评估方法细节，即应予以考虑，用于确定本欧洲评估文件所涵盖产品的性能，并在ETA中详细说明。

What is an EAD?什么是EAD？

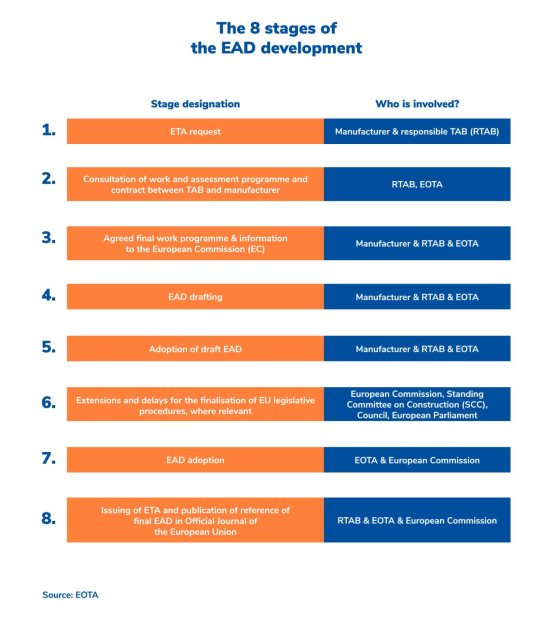

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

带端部连接器的纤维绳ce认证法规-ETA认证

带端部连接器的纤维绳产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

带端部连接器的纤维绳ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

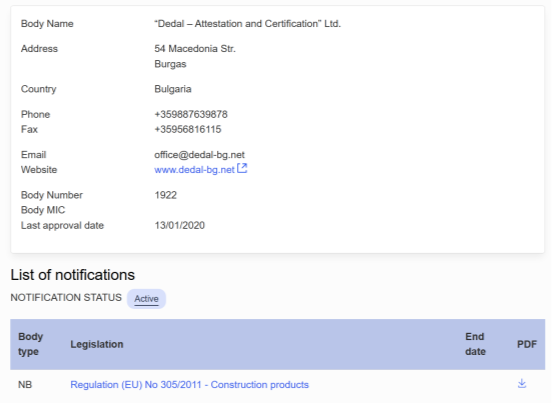

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
