水泥粘结板ce认证标准-ETA认证

EAD 210024-00-0504: 2018

CEMENT-BONDED BOARD

水泥粘结板

cca3444c-72bd-40af-a2db-c695aaa67937

The "Cement-bonded board" is a specific board made of cement acc. to EN 197-1 or a calcium silicate formed by a chemical reaction of a siliceous and a calcareous material reinforced by coated glass fibres (in form of glass fibre meshes or chopped glass fibres). Alternatively the coated glass fibre mesh can be replaced by fibre reinforcement (man-made fibres or wood fibres).

上海郜盟提示“水泥粘结板”是一种根据EN197-1标准由水泥制成的特定板材，或由硅质和钙质材料通过化学反应形成的硅酸钙制成，并采用涂覆玻璃纤维(以玻璃纤维网格或短切玻璃纤维形式)进行增强或者，涂覆玻璃纤维网格可由纤维增强材料(人造纤维或木纤维)替代。

If glass fibre mesh reinforcement is used it shall enclose the complete front and back of the board.

若使用玻璃纤维网格增强材料，则应包裹板材的整个正面和背面

The reinforcing fibres shall be one or more of the following forms:

·discrete elements randomly dispersed (chopped glass fibres);

·continuous strands or tapes;

·nets or webs.

增强纤维应为下列一种或多种形式：

·离散元素随机分散（切碎的玻璃纤维）；

·连续丝或带；

·网或蛛网。

Process aids, fillers, aggregates and pigments may be added.

可添加助剂、填料、骨料和颜料。

The boards are not made with the Hatschek procedure.

这些板材不是通过Hatschek工艺制造的。

This EAD covers cement-bonded board of type NT (Non-asbestos Technology).

本EAD适用于NT型(无石棉技术)水泥粘结板。

The exposed face of the "Cement-bonded board" shall be without texture. The board can be coated with an adherent surface coating (hydrophobic agent) to prevent absorption of humidity during the installation(construction phase).

“水泥粘合板”的暴露面应无纹理。该板材可涂覆一层附着力强的表面涂层(疏水剂)，以防止在安装(施工阶段)时吸收湿气。

This EAD is not valid for "Cement-bonded boards" which contain used wood, man-made mineral fibres orceramic fibres EU 1A/1B.

本EAD不适用于含有废弃木材、人造矿物纤维或陶瓷纤维(EU1A/1B)的“水泥粘结板”

The thickness of the cement-bonded board amounts to a minimum of 6 mm and a maximum of 30 mm.

水泥基板的厚度最小为6毫米，最大为30毫米

For structural applications the recommended thickness of the boards shall be at least 8 mm.

对于结构应用，推荐的板材厚度应至少为8毫米。

The minimum width is 600 mm and the minimum length 900 mm.

最小宽度为600毫米，最小长度为900毫米

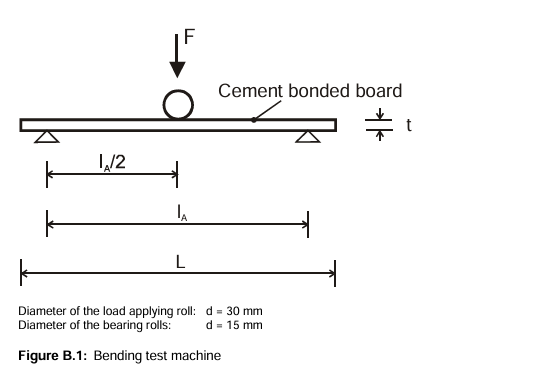

This EAD covers cement bonded board with a minimum modulus of rupture (MOR) for the bending strength perpendicular to the plane according to EN 12467, clause 5.4.4, of 2 MPa and a minimum density of 625 kg/m3

本EAD涵盖水泥粘合板，其根据EN12467第5.4.4条规定的垂直于板面的抗弯强度最小断裂模量(MOR)为2MPa，且最小密度为625kg/m3。

The boards may be supplied with holes for fixing and/or cut to size.

板材可提供用于固定的孔洞和/或按尺寸切割。

The kit consists on the following components: the "Cement-bonded board" and the fasteners for the 'Cement-bonded board".

该套件包含以下组件:水泥基板和用于水泥基板的紧固件。

The "Cement-bonded board" is not fully covered by the harmonised standard hEN 12467. For the intended use of the Cement-bonded board" following additional specifications are required:

·Moisture content (H)

·Dimensional stabilit

·Modification factor (kmod)

·Deformation factor (kae)

·Characteristic bending strength

·Mean value of the bending modulus of elasticity

·Characteristic tensile strength

·Mean value of the tensile modulus of elasticity in the plane of the board

·Characteristic compressive strength

·Mean value of the compressive modulus of elasticity

·Characteristic shear strength in the plane of the board

·Mean value of the shear modulus in the plane of the board

·Characteristic shear strength perpendicular to the plane of the board

·Mean value of the shear modulus perpendicular to the plane of the board

·Embedment Strength (fhak; fhsok)Pull through resistance

·Influence of the edge distance of the fasteners on the embedment strength and slip modulus of the fastener

·Racking resistance

·Impact Resistance (IR)

·Vapour permeability(u)

·Thermal conductivity

“水泥粘合板”未完全涵盖于统一标准 hEN 12467 中。针对“水泥粘合板”的预期用途，需遵循以下附加规范：

· 含水量（H）

尺寸稳定性

修正系数（kmod）

变形系数（Kae）

特征抗弯强度

弯曲弹性模量的平均值

特征抗拉强度

板面内拉伸弹性模量的平均值

特征抗压强度

压缩弹性模量的平均值

板材平面内的特征剪切强度

板面内剪切模量的平均值

垂直于板材平面的特征剪切强度

垂直于板面方向的剪切模量平均值

·嵌入强度（fhak； fhsok）抗拉穿力

紧固件边缘距离对嵌入强度及紧固件滑移模量的影响

抗架阻

抗冲击性（IR）

蒸汽渗透性（u）

·热导率

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并就其认为必要的产品运输、储存、维护、更换和维修事宜向客户提供建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

相关制造商的规定对本欧洲评估文件所涵盖产品的性能具有影响，应在确定性能时予以考虑，并在ETA中详细说明。

Note:The "Cement-bonded board" will be named as "Product".

注:“水泥粘结板”将被命名为“产品”

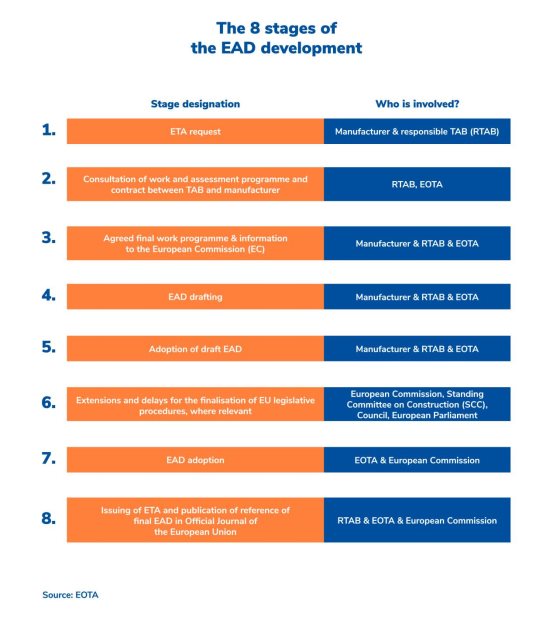

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

水泥粘结板ce认证法规-ETA认证

水泥粘结板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

水泥粘结板ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

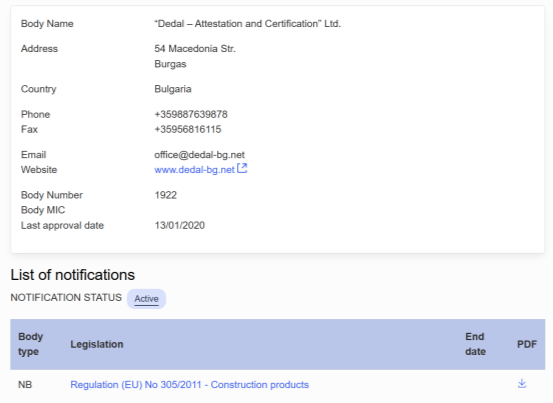

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
