EAD 210046-01-1201: 2022薄金属复合板CE认证/ETA认证详解-上海郜盟

薄金属复合板ce认证标准-ETA认证

EAD 210046-01-1201: 2022 Thin metal composite sheets 薄金属复合板

The EAD applies to thin metal composite sheets (hereafter TMCS). TMCS consists of two thin layers of a metallic skin, which are sandwiching a thin solid core or a thin honeycomb core in a continuous co-extrusion process. The exteral face of metalic skin can be pre-coated or not. The joining of metallic skins with core is achieved either by an adhesive film or by a binder (chemical and mechanical action). Ranges of thickness of thin metal composite sheets are:

·2 - 8 mm for TMCS made of a solid core

·16 - 20 mm for TMCS made of a honeycomb core

上海郜盟提示EAD适用于薄金属复合板（以下简称TMCS）。TMCS由两层薄的金属表层组成，这两层金属表层在连续共挤出工艺中夹着一层薄的实心芯材或薄的蜂窝状芯材。金属表层的表面可以预先涂覆涂层，也可以不涂。金属表层与芯材的连接通过粘合膜或结合剂（化学和机械作用）实现。薄金属复合板的厚度范围如下：

·2 - 8 毫米，适用于实心芯制成的 TMCS

·16 - 20 毫米，适用于采用蜂窝芯材的 TMCS

TMCS is composed of:

·Facing skins made of:

-Aluminium alloy sheets in accordance with EN 485-22 or EN 485-4, surface treated (coil coated in accordance with EN 1396, anodized in accordance with EN ISO 7599) or not, with nominal thickness of external/internal sheets (facing skins) 0.2 mm (+ 8 %)

-Stainless steel sheets in accordance with EN 10088-1 or EN 10088-2 with nominal symmetric thicknesses of sheets (facing skins) from 0.2 up to 0.4 mm (+ 5 %).

·Core made of:

-Solid material: low-density polyethylene, or other polymer blended with or without flame retardant minerals, or minerals with binder.

-Aluminium honeycomb.

·Continuous or discontinuous adhesive layer: For bonding faced skins to core through a continuous industrial process.

TMCS 由以下部分组成：

·表面材质由以下材料制成：

符合 EN 485-22 或 EN 485-4 标准的铝合金板材，经表面处理（按 EN 1396 进行卷材涂覆，按 EN ISO 7599 进行阳极氧化）或未处理，其外/内板（面层）公称厚度为 0.2 毫米（+8%）

- 符合 EN 10088-1 或 EN 10088-2 标准的不锈钢板，其标称对称厚度（面层）从 0.2 毫米至 0.4 毫米（+5%）。

·核心材质：

- 固体材料：低密度聚乙烯，或其他与阻燃矿物混合或未经混合的聚合物，或与粘合剂混合的矿物。

- 铝蜂窝。

连续或间断的粘合层：通过连续的工业流程将面层与芯材粘合。

The product is not covered by a harmonized European standard (hEN).

该产品未涵盖于协调的欧洲标准（hEN）之中。

The product is not covered by the following harmonised technical specification EN 14509, because thermal conductivity of its core is larger than specified one in Clause 1 of EN 14509 and the product is not intended as self-supporting element.

该产品不受以下协调技术规范 EN 14509 的约束，因为其芯材的热导率大于 EN 14509 第 1 条规定的数值，且该产品并非设计为自承构件。

The product is not covered by EAD 090062-01-0404 Kits for external wall claddings mechanically fixed,because in the EAD 090062-01-0404 assessments are considered for families of kits and not for the TMCS alone-

该产品不在EAD 090062-01-0404“机械固定外墙覆层套件”的涵盖范围内，因为在EAD 090062-01-0404评估中考虑的是套件系列，而非单独的TMCS

The product TMCS with core made of aluminium honeycomb is not fully covered by EAD 210046-00-1201. Compared to the previous version of the EAD, the following changes are introduced:

·Thin metal composite sheets made of two thin layers of an aluminium skin, which are sandwiching a thin aluminium honeycomb core and had been added in a continuous co-extrusion process.

·The following new assessment method is added: Torque peel strength, determined in accordance with Clause 2.2.7.

采用铝蜂窝芯制成的TMCS产品未完全涵盖在EAD 210046-00-1201范围内。与先前版本的EAD相比，引入了以下变更：

由两层薄铝皮夹着一层薄铝蜂窝芯制成的薄金属复合板，已通过连续共挤出工艺添加。

·新增以下评估方法：扭矩剥离强度，按第2.2.7条确定。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并视需要就产品的运输、储存、维护、更换和维修向客户提出建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations, e.g, with regard to the intended end use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected.

相关制造商的规定，例如关于预期最终使用条件的规定，只要遵守本欧洲评估文件(EAD)中规定的评估方法细节，就应予以考虑，以确定性能并在欧洲技术认证(ETA)中详细说明。



What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。



薄金属复合板ce认证法规-ETA认证

薄金属复合板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】



薄金属复合板ce认证模式

TAB机构测试+ETA认证， 由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。







薄金属复合板ce认证测试哪些项目

、

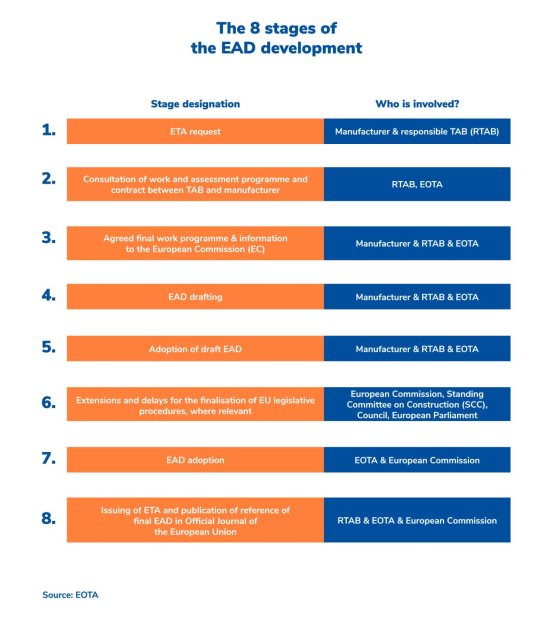

EAD认证流程







薄金属复合板ce认证机构

公告号机构NB1922,拥有欧盟全品类建材产品授权，上海郜盟拥有该机构直接授权，上海办公室审核员可直接代表机构进行工厂审核，大大减少工厂的差旅成本和时间成本

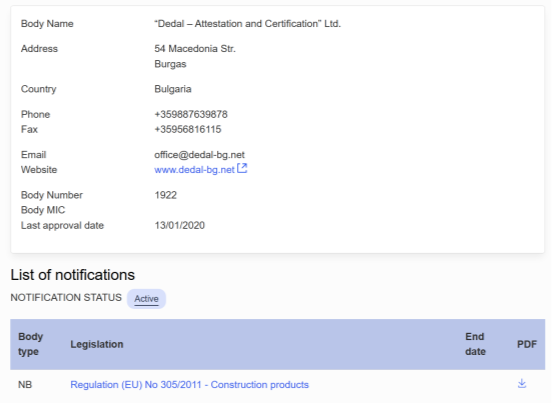

NB1922欧盟官网资质：
