道路标线产品ce认证标准-ETA认证

EAD 230011-00-0106-v01: 2025

Variant: Road marking products -extension of scope

变体:道路标线产品一一范围扩展

This EAD is a variant to EAD 230011-00-0106. This variant extends the scope of the EAD with regard to:

- different types, natures or ways of presenting road marking products;

-other colours than white and yellow, for the same signalization purpose in specific locations

上海郜盟提示本EAD是EAD 230011-00-0106的变体。该变体扩展了EAD在以下方面的范围：

- 不同类型的、性质或呈现方式的道路标记产品；

- 除白色和黄色外的其他颜色，用于特定地点的相同标识目的

Therefore, the scope of the EAD 230011-00-0106 is amended consequently, and the clause 1.1 "Description of the construction product" reads as follows:

因此，EAD230011-00-0106的范围相应修订，第1.1条“构造产品的描述"内容如下:

The product is not covered by a harmonised European standard (hEN).

该产品不受统一欧洲标准(hEN)的覆盖。

The construction product covered by the scope of this EAD is named "Road Marking Product", hereafter referred to as RMP.

本EAD范围涵盖的建筑产品称为“道路标线产品”，以下简称RMP。

A RMP is a surface coating material used for road signalization purposes when it is applied on the road with or without antiskid aggregates and with or without dropped-on glass beads. It is put on the market with indications on types and proportions of dropped-on glass beads and/or anti-skid aggregates.

RMP是一种用于道路标化的表面涂层材料，施于路面时可有或无防滑骨料，也可有或无撒布玻璃珠。该产品上市时附有说明，标明撒布玻璃珠和/或防滑骨料的类型与比例。

In accordance with its nature, the RMP covered by this EAD are: Paints; Thermoplastics; Cold plastics and tapes. Definitions for those products are given in EN 1871 and 17901,

根据其性质，本EAD涵盖的RMP包括:涂料;热塑性塑料;冷塑料和胶带。这些产品的定义见EN1871和17901标准。

Each RMP may be used in different combinations (proportions) and/or application instructions in order to reach different intended uses. Each of these diferent combinations is identified as a System of the same RMP.

每种RMP可采用不同的组合(比例)和/或施用说明，以实现不同的预期用途。这些不同组合中的每一种均被认定为同一RMP的体系。

Each System of the same RMP is identified by means of the trademark of the RMP followed by the word System and a number of order (i.e., Thermo-AX: System 1) and must include, at least, the following information:

-The nature and application instructions of the materials forming the System including the RMP as well as the drop-on materials (including their number of Certificate of Constancy of Performance, where applicable).

-The colour of the RMP and antiskid aggregates.

-The product Trademarks.

-The identification of the producers of each material.

-The proportions (or dosages), expressed in weight of the original products as g/m2 or in applied wet film thickness, in microns, in accordance with the relevant results of EN 1824and/or EN 13197, as applied.

同一RMP的每个系统由该RMP的商标识别，后跟“系统”和一个顺序号（即Thermo-AX：System 1），并且必须至少包括以下信息：

-构成系统（包括RMP）的材料的性质和应用说明，以及滴落材料（包括适用时性能稳定证书的数量）。

-RMP和防滑集料的颜色。

-产品商标。

-确定每种材料的生产者。

-比例（或剂量），以原始产品的重量表示为g/m²，或者根据EN 1824和/或EN 13197的相关结果，以应用的湿膜厚度（微米）表示。

One RMP is the subject of one ETA and may be formed by one or several assessed Systems. The whole of assessed Systems is understood as the family of the particular Road Marking Product.

一个RMP对应一个ETA，可由一个或多个评估系统组成。整个评估系统被视为特定道路标线产品的家族。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并视需要就产品的运输、储存、维护、更换和维修向客户提出建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations, e.g., with regard to the intended end of use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected.

相关制造商的规定(例如，关于预期最终使用条件)，只要遵守本欧洲评估文件(EAD)规定的评估方法细节，即应予以考虑，用于确定本欧洲评估文件(EAD)所涵盖产品的性能，并在欧洲技术认证(ETA)中详细说明。

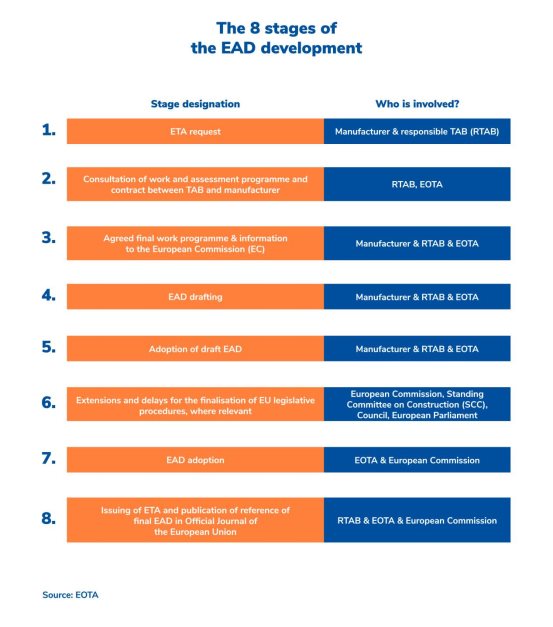

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

道路标线产品ce认证法规-ETA认证

道路标线产品产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

道路标线产品ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

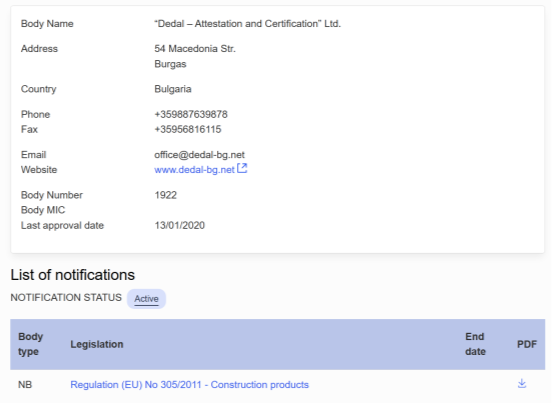

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
