橡胶改性沥青结合料ce认证标准-ETA认证

EAD 230328-00-0108: 2023

Rubber modified bitumen binders

橡胶改性沥青结合料

This EAD relates to rubber modified bitumen binders with a penetration at 25°C of 15-80 (0.1 mm) and a softening point of > 53°C.

上海郜盟提示本EAD适用于在25°C下针入度为15-80(0.1毫米)且软化点大于53°C的橡胶改性沥青结合料。

Rubber modified bitumen binders consist of paving grade bitumen to EN 125911 with one or more of the following types: 35/50, 50/70, 70/100, 100/150 or 160/220, and crumb rubber made from recycled tyres with a largest particle size of 1,25 mm and foreign mater content less than 0,1 wt% (percentage by mass).The minimum rubber content is 5 w% (percentage by mass) and maximum rubber content is 25 wt% (percentage by mass) of rubber modified bitumen binders.

橡胶改性沥青结合料由符合EN125911标准的铺面级沥青与以下一种或多种类型组成:35/50、50/70、70/100、100/150或160/220，以及由回收轮胎制成的橡胶颗粒，其最大粒径为1.25毫米，且杂质含量小于0.1wt%(按质量百分比)。橡胶改性沥青结合料的最低橡胶含量为5wt%(按质量百分比)，最高橡胶含量为25wt%(按质量百分比)。

Rubber modified bitumen binders may also contain additives to improve their properties and processability.The additives can be aromatic oils, crosslinkers or waxes. Depending on the type of additive used, it can promote the compatibility of the crumb rubber and paving grade bitumen, the dissolution of the crumb rubber in the bitumen, and improve the usability of the binders; for example, the production and application temperature of the bituminous mixture can be reduced due to lower viscosity.

橡胶改性沥青结合料也可添加添加剂以改善其性能和加工性能。这些添加剂可以是芳香油、交联剂或蜡。根据所用添加剂的类型，它可以促进橡胶颗粒与铺面级沥青的相容性、促进橡胶颗粒在沥青中的溶解，并提高结合料的可用性;例如，由于粘度降低，沥青混合料的生产温度和应用温度可以降低。

The product is not fully covered by harmonised technical specification EN 14023, due to the following reasons:

·Unlike polymer modified bitumen products, rubber modified bitumen binders are not homogenous binders, they contain undissolved particles, mainly rubber crumb particles.

·Cohesion is not a relevant essential characteristic of rubber modified bitumen binders. Its purpose is to confirm the polymer content of polymer modified bitumen binders and to discriminate between polymer modified bitumens and other bituminous binders.

·Measurement of elastic recovery at 10°C or 25"C (EN 13398) cannot be performed for rubber modified bitumen binders with higher rubber content because the specimen cannot be stretched up to 200 mm without breaking

该产品未完全被协调技术规范EN14023覆盖，原因如下:

·与聚合物改性沥青产品不同，橡胶改性沥青结合料不是均质结合料，它们含有未溶解的颗粒，主要是橡胶碎屑颗粒。

·内聚力并非橡胶改性沥青结合料的相关基本特性。其目的是确认聚合物改性沥青结合料的聚合物含量，并区分聚合物改性沥青与其他沥青结合料。

·对于橡胶含量较高的橡胶改性沥青结合料，无法在10°C或25°C下执行弹性恢复测量(EEN13398)，因为试样在不发生突发的情况下无法拉伸至200毫米

Concerning product packaging. transport, storage, maintenance, replacement and repair it is the responsibilty of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并根据其认为必要的情况，就产品的运输、储存、维护、更换和维修向客户提供建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations, e.g. with regard to the intended end use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected.

相关制造商的规定(例如关于预期最终使用条件的规定)，只要遵守本欧洲评估文件(EAD)中规定的评估方法细节，即应予以考虑，用于确定本欧洲评估文件(EAD)所涵盖产品的性能，并在欧洲技术认证(ETA)中详细说明。

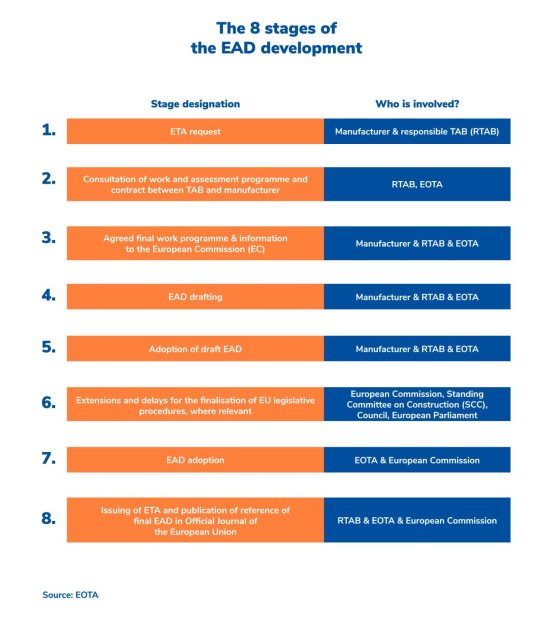

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

橡胶改性沥青结合料ce认证法规-ETA认证

橡胶改性沥青结合料产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

橡胶改性沥青结合料ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

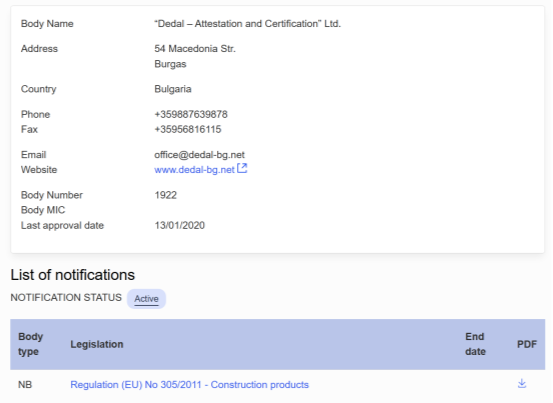

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
