来自市政固体废物焚烧炉的加工底灰ce认证标准-ETA认证

EAD 240002-00-0108: 2023

Processed bottom ashes from municipal solid waste incinerators as aggregates for unbound materials for use in road construction

来自市政固体废物焚烧炉的加工底灰，作为无结合材料的骨料用于道路建设

This EAD covers processed bottom ashes from municipal solid waste incinerators as aggregates for unbound materials for use in road construction (hereinafter referred to as "processed bottom ash). After a first drying phase to facilitate the subsequent processes, the ash is subjected to a mechanical treatment,that includes crushing and sieving, separation of ferric and non-feric materials and a covered natural maturation at least for two months. This treatment, only mechanical, will allow to recover a bottom ash with a declared overall aggregated content of silica (SiO2), CaO, FeO3; Al2O3; Na2O; MgO of 85-95% in weight,a maximum value of loss on ignition value (LOI at 950±25°C) below 8,5 % in weight. The processed bottom ash may have other minor inorganic components (e.g., P2Os, SO3, K2O, TiO2, MnO.. .), without exceeding 6% in weight, considering all the minor components as a whole. As the different incineration and treatment technologies are not comparable and will have a major impact on the homogeneity of the ash and thus on its final behaviour, the above ranges of composition are established in such a way as to ensure ash homogeneity.

上海郜盟提示本环境评估文件涵盖城市固体废物焚烧炉处理后的炉底灰，作为道路建设中非粘结材料的骨料（以下简称“处理后的炉底灰”）。炉底灰经第一阶段干燥以利于后续工序后，进行机械处理，包括破碎和筛分、分离含铁和非含铁物质，并在遮蔽条件下自然熟化至少两个月。仅通过机械处理，即可回收炉底灰，其二氧化硅 (SiO2)、氧化钙 (CaO)、氧化亚铁 (FeO3)、氧化铝 (Al2O3)、氧化钠 (Na2O) 和氧化镁 (MgO) 的总含量为 85-95%（重量百分比），最大灼烧失重值（950±25℃ 下的 LOI）低于 8.5%（重量百分比）。处理后的炉底灰可能含有其他少量无机成分（例如，五氧化二磷 (P2O)、三氧化硫 (SO3)、氧化钾 (K2O)、二氧化钛 (TiO2)、氧化锰 (MnO) 等），但所有少量成分的总含量不得超过 6%（重量百分比）。焚烧和处理技术不可比拟，会对灰烬的均匀性产生重大影响，从而影响其最终性能。上述成分范围的设定是为了确保灰烬的均匀性。

Typically, for the final application or use, this processed bottom ash may be mixed with other natural or artificial aggregates.

通常，在最终应用或使用时，这种处理后的底灰可与其他天然或人工骨料混合。

The bottom ash before the treatment described above is classified in accordance with Commission Decision 2014/955/EU amending Decision 2000/532/EC on the list of waste pursuant to Directive 2008/98/EC, with EWC (European Waste Codes) code 19 01 12.

上述处理前的底灰根据欧盟委员会第2014/955/EU号决定(该决定修订了关于根据第2008/98/EC指令制定废物清单的第2000/532/EC号决定)进行分类，其欧洲废物编码(EWC)为190112。

The product is not fully covered by the following harmonised technical specification: EN 132421, The standard does not include specific provisions for aggregates from secondary materials coming from municipal solid waste incinerators. Specifically:

该产品未完全涵盖于以下统一技术规范:EN132421。该标准未包含针对来自城市固体废物焚烧炉的二次材料集料的具体规定。具体而言:

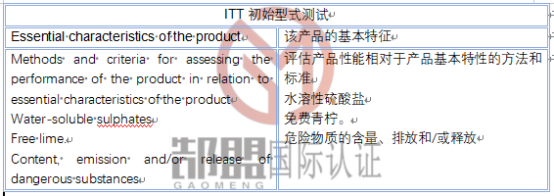

-Water-soluble sulphates, clause 6.4, and free lime. The thermal industrial process and mechanical treatment to which processed bottom ash is subjected, does not ensure that the processed bottom ash does not content water soluble sulphates and/or free lime.

-水溶性硫酸盐(第6.4条)和游离石灰。对处理后的底灰进行的热工业处理和机械处理，并不能确保处理后的底灰不含水溶性硫酸盐和/或游离石灰。

The following essential characteristics, included in in Annex ZA of EN 13242, are not relevant for processed bottom ash:

以下包含在EN133242附录ZA中的基本特性，对于加工底灰不适用:

-classification of constituents of coarse recycled aggregates, clause 5.6, is not relevant for processed bottom ash because it only applies to recycled aggregates,

粗骨料组成成分的分类(第5.6条)不适用于加工后的底灰，因为它仅适用于再生骨料。

-components affecting the settings and the hardening of cement, clause 6.5.1, because it only applies to hydraulically bound materials,

影响水泥凝结和硬化性能的组分，第6.5.1条，因其仅适用于水硬性材料

-"Sonnenbrand" of basalt, clause 7.2, because it only applies to basalt-based materials

玄武岩的 "Sonnenbrand”(Sonnenbrand)，第7.2条，因其仅适用于玄武岩基材料。

-acid soluble sulphate content of combined aggregates, clause 6.2, is not relevant for processed bottom ash because it only applies to hydraulically bound materials.

混合骨料的酸溶性硫酸盐含量(第6.2条)对加工后的底灰不适用，因为它仅适用于水硬性结合材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement, and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并根据其认为必要的情况，就产品的运输、储存、维护、更换和维修向客户提供建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations, e.g., with regard to the intended end use conditions, having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA as long as the details of the assessment methods as laid down in this EAD are respected.

只要遵守本欧洲评估文件(EAD)规定的评估方法细节，就应考虑到相关制造商的规定(例如关于预期最终使用条件)，这些规定会影响本欧洲评估文件所涵盖产品的性能，并应在欧洲技术认证(ETA)中予以确定和详细说明。

What is an EAD?什么是EAD？

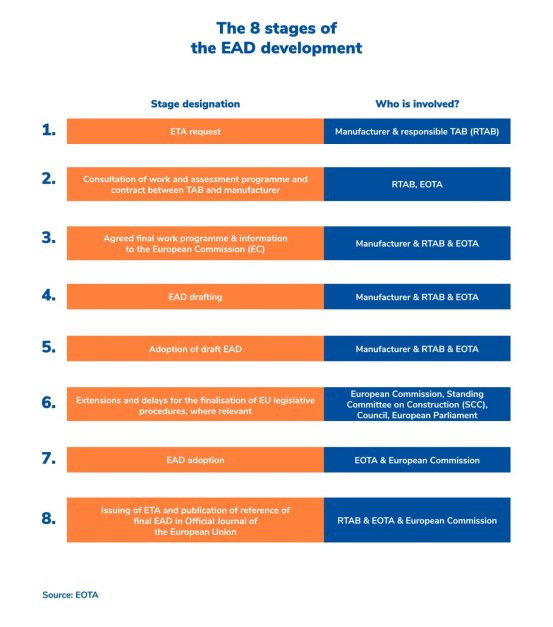

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

来自市政固体废物焚烧炉的加工底灰ce认证法规-ETA认证

来自市政固体废物焚烧炉的加工底灰产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

来自市政固体废物焚烧炉的加工底灰ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

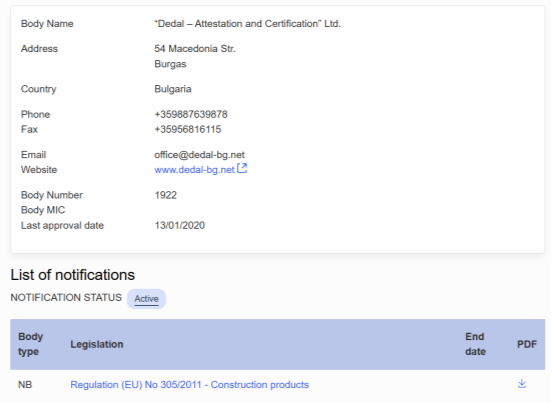

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
