EAD 260009-00-0301: 2016 来自市政固体废物焚烧炉的加工底灰CE认证/ETA认证详解-上海郜盟

b2a403568721380ca8862297020d86fd

来自市政固体废物焚烧炉的加工底灰ce认证标准-ETA认证

EAD 260009-00-0301: 2016

PROCESSED BOTTOM ASH FROM MUNICIPAL SOLID WASTE INCINERATORS AS TYPE II ADDITION FOR PRODUCTION OF CONCRETE, MORTAR AND GROUT

来自市政固体废物焚烧炉的加工底灰，作为I型添加剂用于混凝土、砂浆和灌浆料生产

Concrete addition obtained by physical and chemical treatment of municipal solid waste incinerators bottom ashes (MIBA) deriving from municipal solid waste incinerators (waste from households as well as commercial, industrial and institutional waste, which because of its nature and composition is similar to waste from households, excluding hazardous waste).

上海郜盟提示通过物理和化学处理市政固体废物焚烧炉底灰(MIBA)获得的混凝土添加剂，该底灰来源于市政固体废物焚烧炉(包括家庭废物以及商业、工业和机构废物，因其性质和成分与家庭废物相似，不包括危险废物)。

The treatment process is characterized by wet micronization of the mineral particles, by the high level reached of separation of metal scraps initially present in MIBA and, particularly, by the fact that the final product is metallic aluminium free and therefore does no longer induce hydrogen formation.

该处理过程的特点是矿物颗粒的湿法微粉化、MIBA中最初存在的金属废料分离程度

高，特别是最终产品不含金属铝，因此不再引发氢气的生成。

The final product (which, after wet micronization in form of slurry, undergoes a partial dehydration phase) is a humid aggregate with sand appearance and a grain size about O mm to 6 mm, constituted of elemental fine particles aggregated in clusters. The water present in the product should be considered as hydration water in concrete design.

最终产品(在湿法微粉化形成浆料形态后，经过部分脱水阶段)是一种湿润的团聚体，具有砂状外观，粒径约为0毫米至6毫米，由聚集成团的细颗粒组成。产品中存在的水分在混凝土设计中应视为水化水。

Maximum grain size is kept below 0.15 mm by sieving of the final product.

通过筛分最终产品，将最大粒径控制在0.15毫米以下。

The final product has high pozzolanic properties and can be used to produce concrete with improved properties, both in the fresh and hardened states.

最终产品具有高火山灰性质，可用于生产在新鲜和硬化状态下均具备改进性能的混凝土。

The product is normally used in combination with a plasticizer and/or superplasticizer and, in particular conditions, depending on the other components of concrete, the mix design, etc., it may require an addition of a defoamer2 in order to avoid the entrapment of excess of air.

该产品通常与塑化剂和/或高效减水剂配合使用，并且在特定条件下，根据混凝土的其他组分、配合比设计等因素，可能需要添加消泡剂2，以避免产生过多气泡。

The product is registered under REACH and its EC number is 939-997-0.

该产品已根据REACH法规注册，其EC编号为939-997-0。

The product is not covered by a harmonised European standard (hEN).

该产品未被纳入欧洲统一标准(hEN)。

Concerning product packaging, transport, and storage, it is the responsibility of the manufacturer tounder take the appropriate measures and to advise his clients on the transport and storage, of the productas he considers necessary.

关于产品的包装、运输和储存，制造商有责任采取适当措施，并根据其认为必要的

情况，就产品的运输和储存向客户提供建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设该产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

相关制造商的规定对本欧洲评估文件所涵盖产品的性能具有影响，应在确定性能时予以考虑，并在ETA中详细说明。

What is an EAD?什么是EAD？

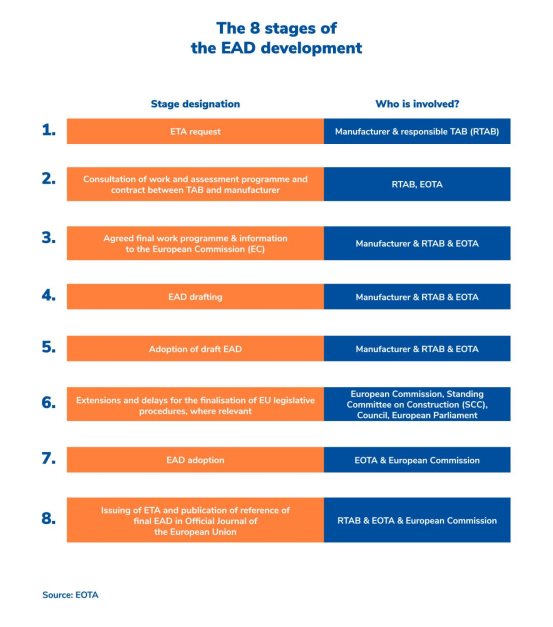

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

来自市政固体废物焚烧炉的加工底灰ce认证法规-ETA认证

来自市政固体废物焚烧炉的加工底灰产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

来自市政固体废物焚烧炉的加工底灰ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

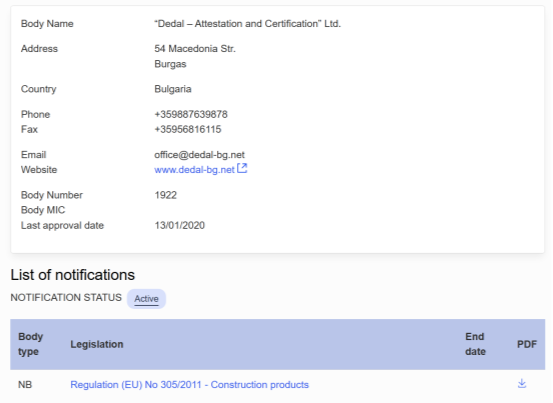

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
